MarkupText¶

Qualified name: algan.mobs.text.MarkupText

class MarkupText(text, fill_opacity=1, stroke_width=0, color=None, font_size=48, line_spacing=None, font='', slant='NORMAL', weight='NORMAL', justify=False, gradient=None, tab_width=4, height=None, width=None, center=True, disable_ligatures=False, warn_missing_font=True, **kwargs)[source]¶

Bases: Text

Plain text from a Pango-markup source, with the markup stripped out.

Manim’s markup syntax is accepted so a ported script keeps running, but the tags never reach the glyph renderer: <br/> becomes a line break, HTML entities are unescaped, and every other tag is deleted before the text is typeset. This happens whether or not the optional Pango renderer is available, so a <span foreground='red'> span comes out in the Mob’s own color, not red. The source you passed is kept on original_text.

To color or restyle part of a string, use Text’s color_map / font_map / slant_map / weight_map / gradient_map arguments instead – those do reach the renderer.

Parameters:

text – The marked-up source. Tags are stripped, <br/> becomes a newline and entities such as & are unescaped; what remains is typeset.
justify – Accepted for Manim parity and has no effect on the rendered text; it is stored on the Mob as justify. Defaults to False.
fill_opacity – As Text, with the same defaults.
stroke_width – As Text, with the same defaults.
color – As Text, with the same defaults.
font_size – As Text, with the same defaults.
line_spacing – As Text, with the same defaults.
font – As Text, with the same defaults.
slant – As Text, with the same defaults.
weight – As Text, with the same defaults.
gradient – As Text, with the same defaults.
disable_ligatures – As Text, with the same defaults.
warn_missing_font – As Text, with the same defaults.
tab_width – As Text, with the same defaults. All of these are redeclared here only so this constructor’s signature matches Manim’s.
height – As Text, with the same defaults. All of these are redeclared here only so this constructor’s signature matches Manim’s.
width – As Text, with the same defaults. All of these are redeclared here only so this constructor’s signature matches Manim’s.
center – As Text, with the same defaults. All of these are redeclared here only so this constructor’s signature matches Manim’s.
**kwargs – Passed to Text.

original_text¶: The markup source exactly as given, before stripping.

Examples

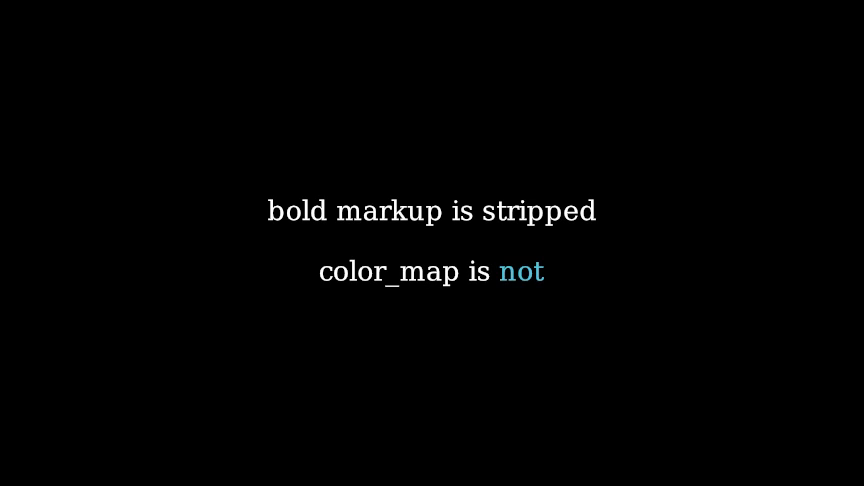

A markup string, and the Text spelling that actually colors the span:

Example: Example1MarkupText ¶

from algan import *

MarkupText("<b>bold</b> markup is stripped",
           font_size=32).move(UP * 0.5).spawn()
Text("color_map is not", font_size=32,
     color_map={"not": BLUE}).move(DOWN * 0.5).spawn()

Scene.save_video()

Methods

Attributes

`animation_manager`	This mob's scene-owned animation manager.
`basis`	The Mob's orientation and scale, as a flattened 3x3 matrix of shape `(*, 9)`.
`casts_shadows`	Whether this Mob's geometry blocks light on its way from a light source to another surface -- whether it casts a shadow.
`children`	The Mobs attached below this one, in attachment order.
`closed_shell`	Whether this Mob's triangles form a CLOSED shell -- every camera ray that enters the geometry crosses a second time on its way out.
`draws_descendants`	Whether `get_render_primitives` returns geometry belonging to this Mob's DESCENDANTS as well as its own.
`forward`	Get the direction the Mob is facing.
`lifespan`	This mob's [spawn, despawn) interval on its Scene timeline (a `Lifespan`).
`location`	The Mob's position in world space, shape `(*, 3)`.
`normalized_basis`	The Mob's orientation with scale divided out, shape `(*, 9)`.
`parents`	The Mobs this one is attached to, in attachment order.
`receives_shadows`	Whether this Mob's surfaces are darkened by shadows cast onto them.
`right`	Get the Mob's own rightward direction.
`scale_coefficient`	The Mob's scale along its own right, up and forward axes, shape `(*, 3)`.
`triangulated`
`two_sided`	Whether this Mob's geometry should be lit from whichever side the ray arrives on.
`up`	Get the Mob's own upward direction.
`x`	The Mob's x coordinate in world units, shape `(*, 1)`.
`xy`	The Mob's x and y coordinates in world units, shape `(*, 2)`.
`y`	The Mob's y coordinate in world units, shape `(*, 1)`.
`z`	The Mob's z coordinate in world units, shape `(*, 1)`.
