procedural_textures

Procedural texture images – checkerboards, stripes, dots, gradients, noise.

Every function here returns an [W, H, 5] Color image, which is exactly what a Surface takes as its color_texture (and, one channel of it, as a roughness_texture or a glow_texture):

from algan import *

Sphere(color_texture=get_checkerboard((RED, WHITE))).spawn()

The first axis of the image is the surface’s u parameter and the second its v, matching color_texture. Because the pattern lives in a texture rather than in the mesh, its detail is independent of the surface’s grid resolution: a flat plane sampled at two vertices per axis carries as fine a checkerboard as a densely tessellated sphere, and deforming the surface carries the pattern along with it.

Every generator takes a texture_resolution – the size of the image in texels – separately from the count of pattern cells. The renderer samples the map bilinearly, so a pattern needs several texels per cell to read as a hard edge rather than a gradient; the defaults give 32.

Functions

get_bricks(colors=('#9C4A32', '#B35A3F'), resolution=(6, 12), *, mortar_color=Color([0.2667, 0.2667, 0.2667, 0.0000, 1.0000]), mortar_width=0.06, offset=0.5, texture_resolution=None)[source]

Build a running-bond brick texture, as an [W, H, 5] color image.

Every other course is shifted along u so the joints do not line up, which is what makes a brick wall read as one rather than as a grid.

Parameters:

  • colors – The colors the bricks cycle through, or a single color for a uniform wall. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to two clay browns, ("#9C4A32", "#B35A3F").

  • resolution (int | tuple[int, int]) – How many bricks the wall has, as (u_bricks, v_courses) or one number for both. Defaults to (6, 12), six bricks across each of twelve courses.

  • mortar_color – Color of the joints between them. Defaults to GRAY_D.

  • mortar_width (float) – Thickness of a joint as a fraction of one brick, from 0 to 1. Defaults to 0.06.

  • offset (float) – How far each alternate course is shifted along u, as a fraction of one brick. Defaults to 0.5, the half-brick running bond; 0 stacks the courses.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per brick, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors, or a count is below its minimum.

Examples

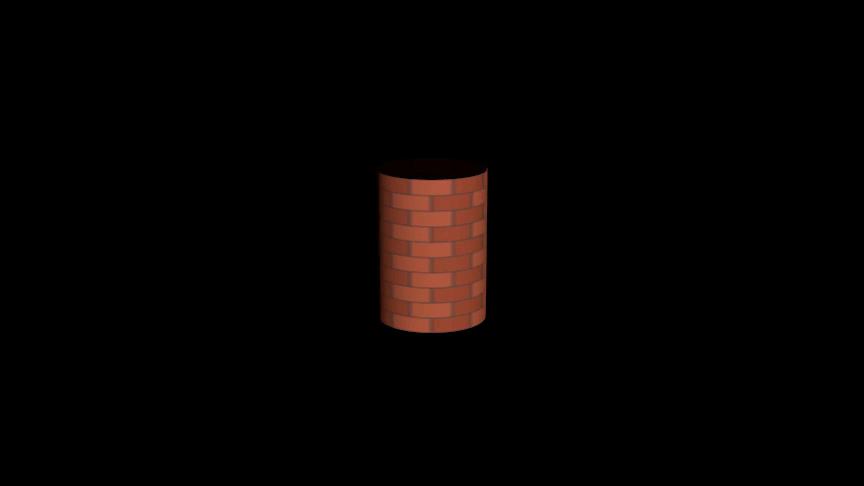

A brick column:

Example: Example1GetBricks

../_images/Example1GetBricks-1.png
from algan import *

Cylinder(
    radius=0.9,
    height=2.5,
    color_texture=get_bricks(resolution=(8, 10)),
).rotate(15, RIGHT).spawn()

Scene.save_video()
get_checkerboard(colors=(Color([1., 1., 1., 0., 1.]), Color([0., 0., 0., 0., 1.])), resolution=8, *, texture_resolution=None)[source]

Build a checkerboard texture, as an [W, H, 5] color image.

The square a texel falls in is colored by (u_index + v_index) % len(colors), so two colors give the usual checkerboard and three or more give diagonal stripes.

Pass the result as a surface’s color_texture. The pattern is carried in the surface’s (u, v) domain, so it is as fine on a flat two-triangle quad as on a densely tessellated sphere, and it follows the surface as it deforms.

Parameters:

  • colors – The colors to alternate between: a sequence of two or more, or a single color for a plain fill. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to (WHITE, BLACK).

  • resolution (int | tuple[int, int]) – How many squares the pattern has, as (u_squares, v_squares) or one number for both. Defaults to 8, an 8x8 board.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per square, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5]: the first axis is u, the second v, and the five channels are (R, G, B, glow, alpha).

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors, or a count is below its minimum.

See also

get_stripes()

Bands rather than squares.

color_texture

Where the image goes.

set_checkerboard_colors()

The same look painted on the mesh’s own vertices instead.

Examples

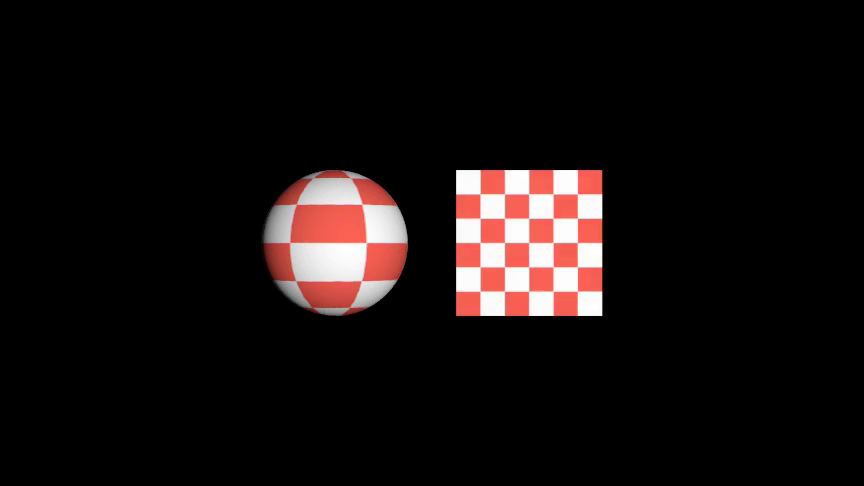

A checkered sphere, and a flat plane carrying the same board – the pattern comes from the texture, so the two-triangle plane is as detailed as the sphere:

Example: Example1GetCheckerboard

../_images/Example1GetCheckerboard-1.png
from algan import *
import torch

def plane(uv):
    xy = (uv - 0.5) * 2.4
    return torch.cat((xy, torch.zeros_like(uv[..., :1])), -1)

checker = get_checkerboard((RED, WHITE), resolution=6)
Sphere(radius=1.2, color_texture=checker).move(LEFT * 1.6).spawn()
Surface(plane, grid_width=2, grid_height=2, color_texture=checker).move(
    RIGHT * 1.6
).spawn()

Scene.save_video()
get_gradient(colors=(Color([0., 0., 0., 0., 1.]), Color([1., 1., 1., 0., 1.])), *, angle=0.0, texture_resolution=None)[source]

Build a linear color ramp, as an [W, H, 5] color image.

The colors are spread evenly along the ramp, one stop each, and interpolated between – all five channels of them, so a ramp from an opaque color to TRANSPARENT fades a surface out along an axis.

Parameters:

  • colors – The color stops, in order along the ramp. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to (BLACK, WHITE).

  • angle (float) – Direction the ramp runs, in degrees, measured from the u axis towards v. Defaults to 0, running along u.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 256 square.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors.

See also

get_radial_gradient()

The same ramp spread out from a point.

Examples

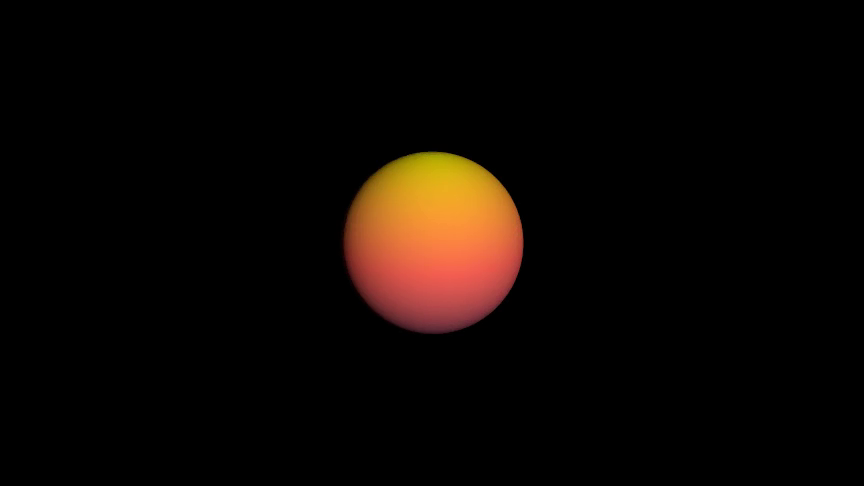

A sunset-graded sphere:

Example: Example1GetGradient

../_images/Example1GetGradient-1.png
from algan import *

Sphere(
    radius=1.5,
    color_texture=get_gradient((PURPLE_E, RED, YELLOW), angle=90),
).rotate(20, RIGHT).spawn()

Scene.save_video()
get_grid_lines(line_color=Color([1., 1., 1., 0., 1.]), background_color=Color([0., 0., 0., 0., 1.]), resolution=8, *, line_width=0.08, texture_resolution=None)[source]

Build a texture of grid lines over a flat background.

The lines sit on the cell boundaries, so a graph-paper surface reads its own (u, v) parameterization: latitude and longitude on a sphere, a wire grid on a plotted saddle.

Parameters:

  • line_color – Color of the lines. An Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to WHITE.

  • background_color – Color of the cells between them, in the same forms. Defaults to BLACK. Pass TRANSPARENT for lines over a see-through surface.

  • resolution (int | tuple[int, int]) – How many cells the grid has, as (u_cells, v_cells) or one number for both. Defaults to 8.

  • line_width (float) – Thickness of a line as a fraction of one cell, from 0 to 1. Defaults to 0.08.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per cell, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If a color is unreadable, or a count is below its minimum.

Examples

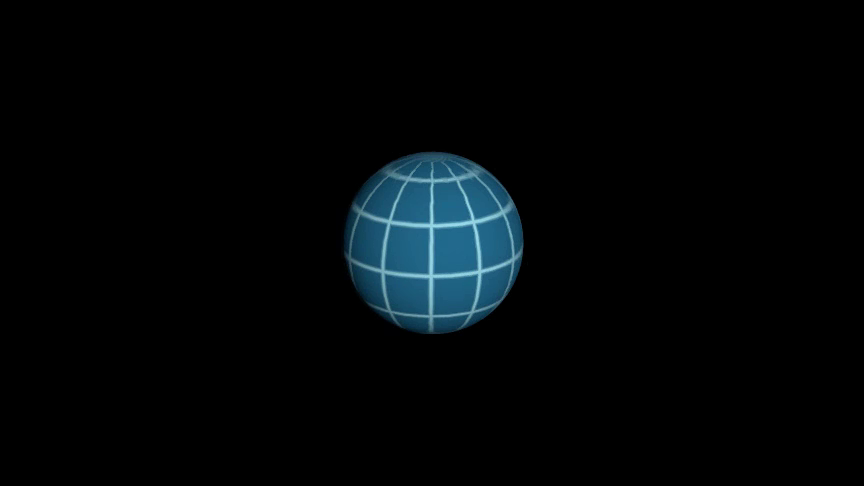

A wireframe globe:

Example: Example1GetGridLines

../_images/Example1GetGridLines-1.png
from algan import *

Sphere(
    radius=1.5,
    color_texture=get_grid_lines(BLUE_B, BLUE_E, resolution=(12, 6)),
).rotate(20, RIGHT).spawn()

Scene.save_video()
get_noise(colors=(Color([0., 0., 0., 0., 1.]), Color([1., 1., 1., 0., 1.])), resolution=8, *, octaves=4, persistence=0.5, seed=None, texture_resolution=None)[source]

Build a fractal value-noise texture, as an [W, H, 5] color image.

Smooth random values are drawn on a lattice and summed over successively finer, weaker octaves – clouds, marble, rust, a rough-looking roughness map. The lattice wraps, so the image tiles seamlessly on an axis where the surface closes on itself.

Parameters:

  • colors – The color stops the noise value is mapped through, from lowest to highest. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to (BLACK, WHITE), a greyscale field.

  • resolution (int | tuple[int, int]) – Lattice size of the coarsest octave, as (u_cells, v_cells) or one number for both. Defaults to 8.

  • octaves (int) – How many times the lattice is doubled and added in at half the weight. Defaults to 4. 1 gives plain smooth blobs.

  • persistence (float) – How much weight each octave keeps relative to the one before, from 0 to 1. Defaults to 0.5; higher is rougher.

  • seed (int | None) – Seed for the random lattice, so a texture can be reproduced. Defaults to None, meaning a fresh pattern on every call.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per lattice cell, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors, or a count is below its minimum.

Examples

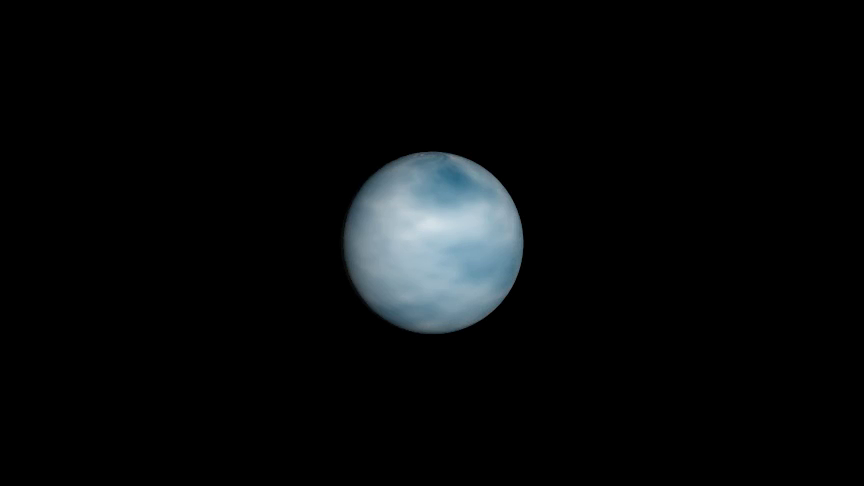

A cloudy planet:

Example: Example1GetNoise

../_images/Example1GetNoise-1.png
from algan import *

Sphere(
    radius=1.5,
    color_texture=get_noise((BLUE_E, WHITE), resolution=6, seed=7),
).rotate(20, RIGHT).spawn()

Scene.save_video()
get_polka_dots(dot_color=Color([1., 1., 1., 0., 1.]), background_color=Color([0., 0., 0., 0., 1.]), resolution=8, *, radius=0.3, texture_resolution=None)[source]

Build a texture of evenly spaced dots over a flat background.

Parameters:

  • dot_color – Color of the dots. An Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to WHITE.

  • background_color – Color behind them, in the same forms. Defaults to BLACK.

  • resolution (int | tuple[int, int]) – How many dots the pattern has, as (u_dots, v_dots) or one number for both. Defaults to 8.

  • radius (float) – Radius of a dot as a fraction of one cell, from 0 to 0.5 (at 0.5 neighbouring dots touch). Defaults to 0.3.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per dot, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If a color is unreadable, or a count is below its minimum.

Examples

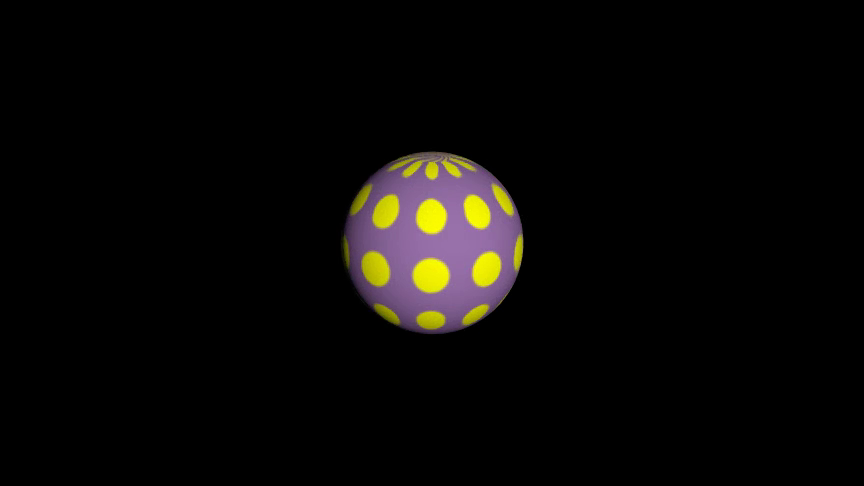

A spotted ball:

Example: Example1GetPolkaDots

../_images/Example1GetPolkaDots-1.png
from algan import *

Sphere(
    radius=1.5,
    color_texture=get_polka_dots(YELLOW, PURPLE, resolution=(10, 5)),
).rotate(20, RIGHT).spawn()

Scene.save_video()
get_radial_gradient(colors=(Color([1., 1., 1., 0., 1.]), Color([0., 0., 0., 0., 1.])), *, center=(0.5, 0.5), radius=0.5, texture_resolution=None)[source]

Build a radial color ramp, as an [W, H, 5] color image.

The first color sits at the center and the last at radius and beyond.

Parameters:

  • colors – The color stops, from the center outwards. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to (WHITE, BLACK).

  • center (tuple[float, float]) – Where the ramp starts, as (u, v) in [0, 1]. Defaults to (0.5, 0.5), the middle of the domain.

  • radius (float) – Distance from the center at which the last color is reached, in the same [0, 1] units. Defaults to 0.5.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 256 square.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors.

Examples

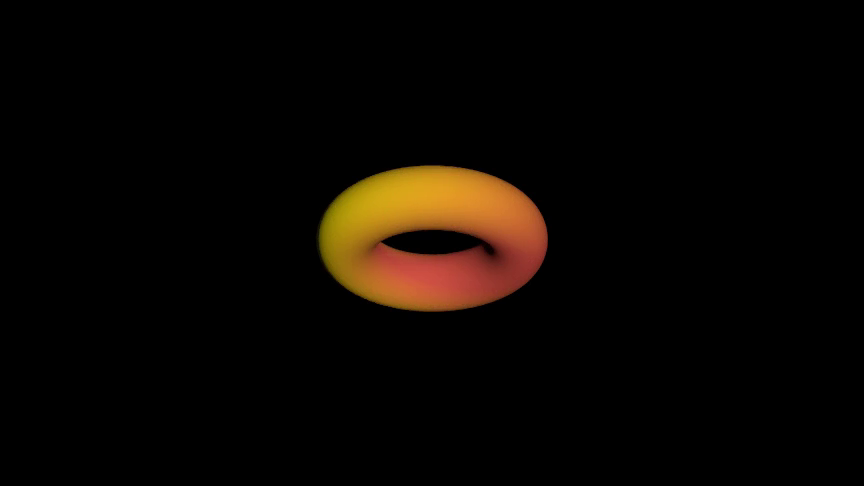

A torus lit from the middle of its texture domain:

Example: Example1GetRadialGradient

../_images/Example1GetRadialGradient-1.png
from algan import *

Torus(
    ring_radius=1.4,
    tube_radius=0.5,
    color_texture=get_radial_gradient((YELLOW, RED_E)),
).rotate(60, RIGHT).spawn()

Scene.save_video()
get_stripes(colors=(Color([1., 1., 1., 0., 1.]), Color([0., 0., 0., 0., 1.])), resolution=8, *, angle=0.0, texture_resolution=None)[source]

Build a texture of parallel stripes, as an [W, H, 5] color image.

Parameters:

  • colors – The colors to cycle through across the stripes, or a single color for a plain fill. Each is an Algan Color, a named constant such as BLUE, or anything Color() accepts. Defaults to (WHITE, BLACK).

  • resolution (int) – How many stripes the pattern has across the whole domain. Defaults to 8.

  • angle (float) – Direction the stripes run, in degrees, measured from the v axis towards u. Defaults to 0, giving stripes that run along v and band across u – lines of longitude on a sphere. 90 gives the other axis.

  • texture_resolution (int | tuple[int, int] | None) – Size of the generated image in texels, as (width, height) or one number for both. Defaults to None, meaning 32 texels per stripe, bounded to 64–1024 per axis.

Returns:

The texture, shape [W, H, 5].

Return type:

Color

Raises:

AlganConfigurationError – If colors holds no colors, or a count is below its minimum.

See also

get_checkerboard()

Squares rather than bands.

Examples

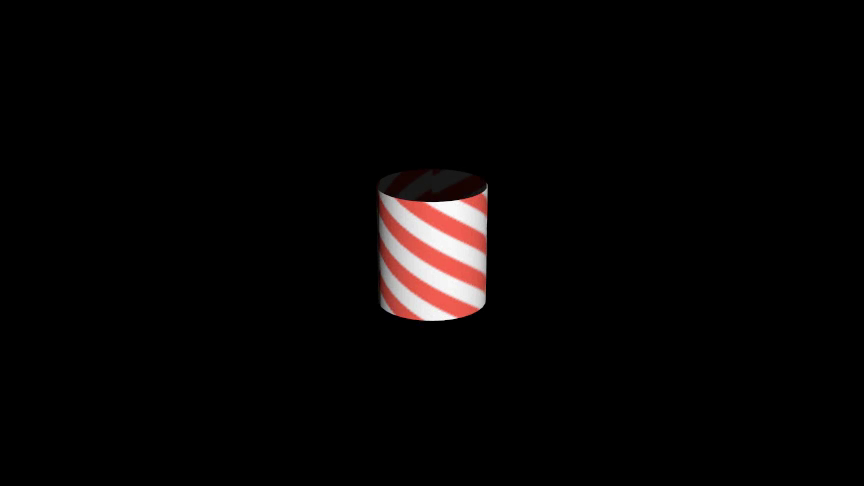

A barber-pole cylinder:

Example: Example1GetStripes

../_images/Example1GetStripes-1.png
from algan import *

Cylinder(
    radius=0.9,
    height=2.0,
    color_texture=get_stripes((RED, WHITE), resolution=12, angle=30),
).rotate(20, RIGHT).spawn()

Scene.save_video()
